Roger Siminoff

F5 Mandolin ProSeries Templates-and-Fixtures Drawings

$40.00 $0.00

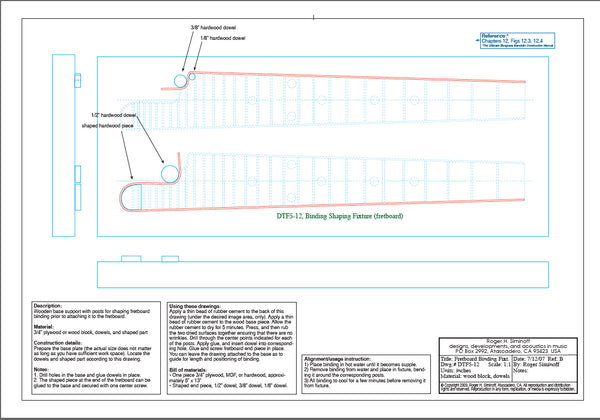

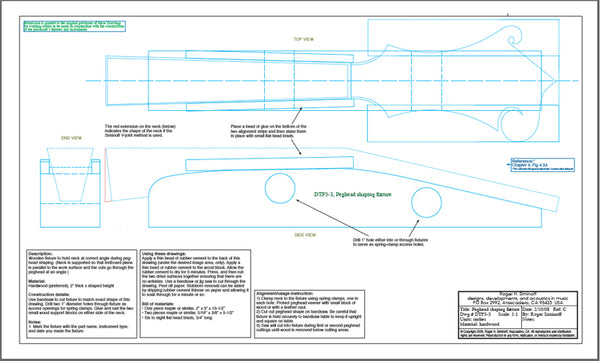

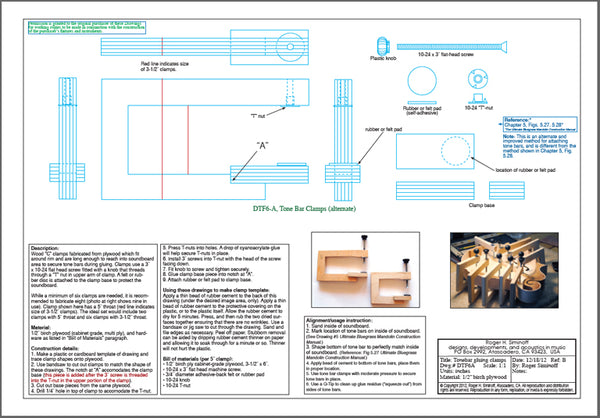

Here's a set of highly accurate full-size drawings for constructing an F5 mandolin. Siminoff's ProSeries Template and Fixture Drawings includes:  body assembly fixture, dovetail cutting fixture, peghead cutting fixture, V-joint cutting fixture, truss rod slotting fixture, tone bar gluing fixture, and several templates for various body and neck parts.

  • Full-size, highly detailed, precise
  • Computer-generated
  • Laser-cut, stapled set

NOTE: For laser-cut acrylic templates for the F5, A5, A1, and F4 mandolins, and for the H5 mandola, please visit our Siminoff Books web site at www.siminoffbooks.com or CLICK HERE
